COLOR OPTIONS

beoKEY

Entry panel | Numeric keypad | Space for access control reader | beoCatBUS® | Ethernet LAN

---

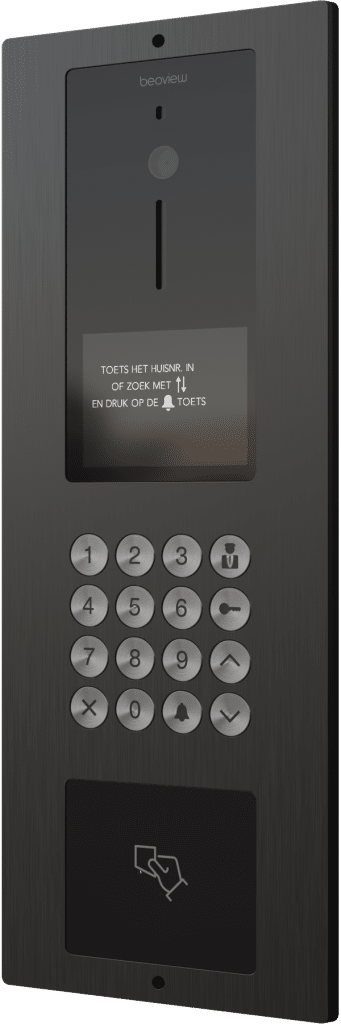

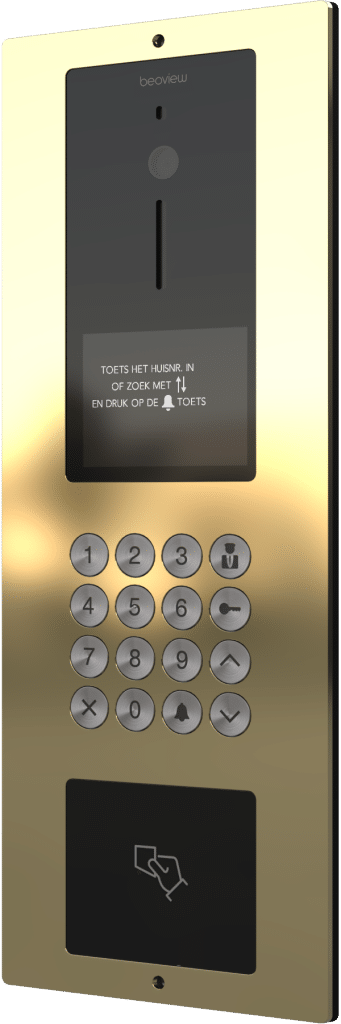

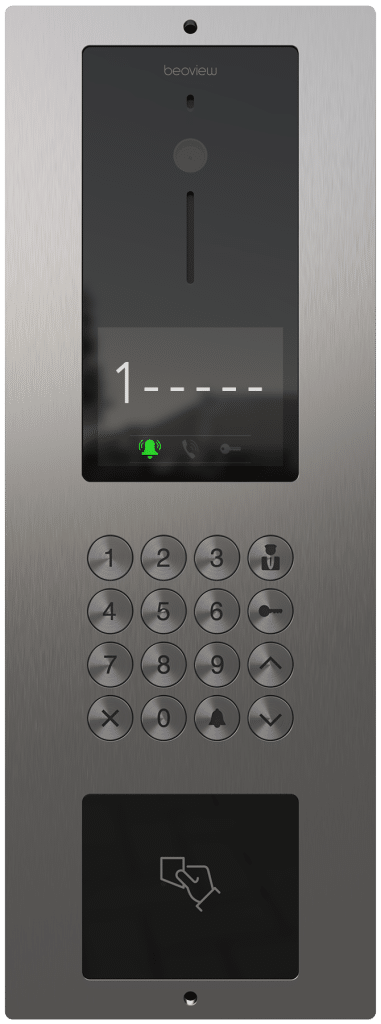

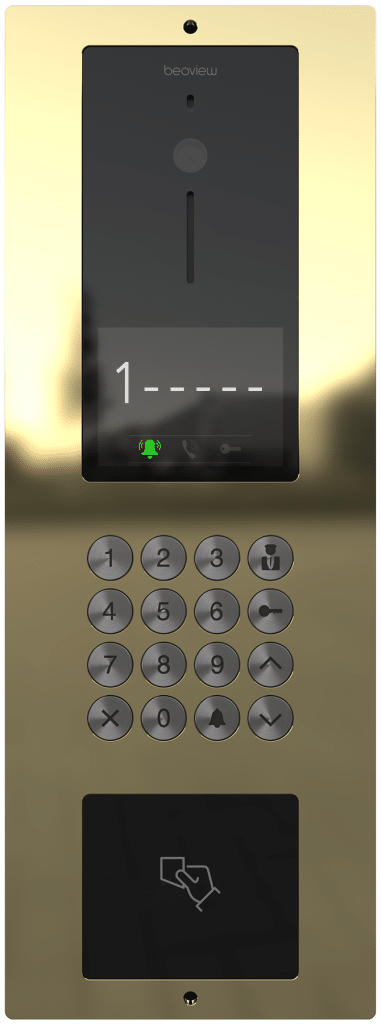

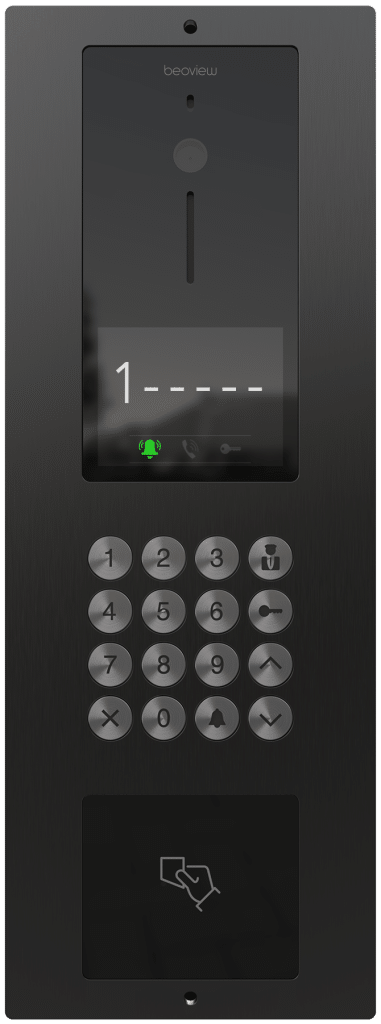

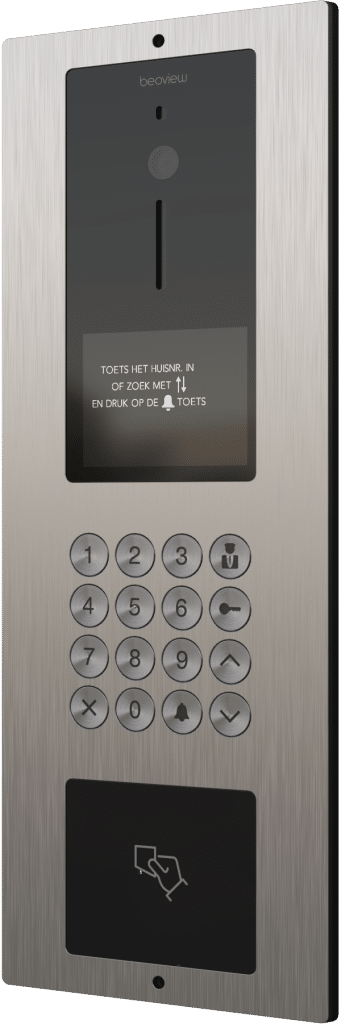

Numeric keypad entry panel. Front in marine grade stainless steel, black PVD or solid brass.

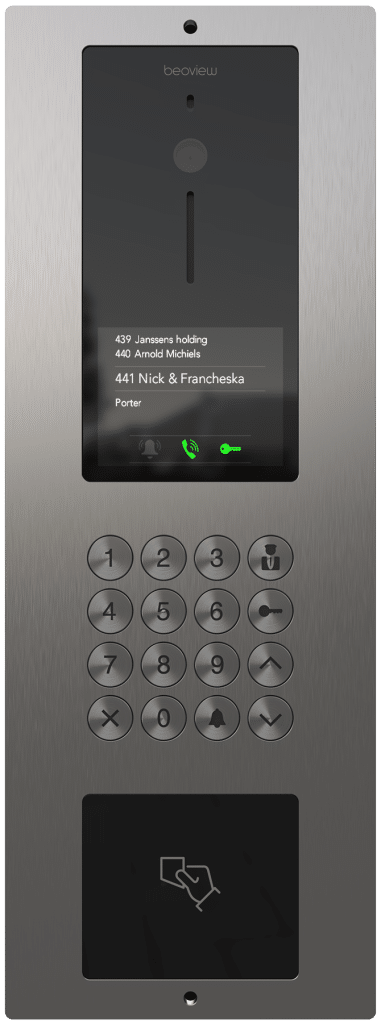

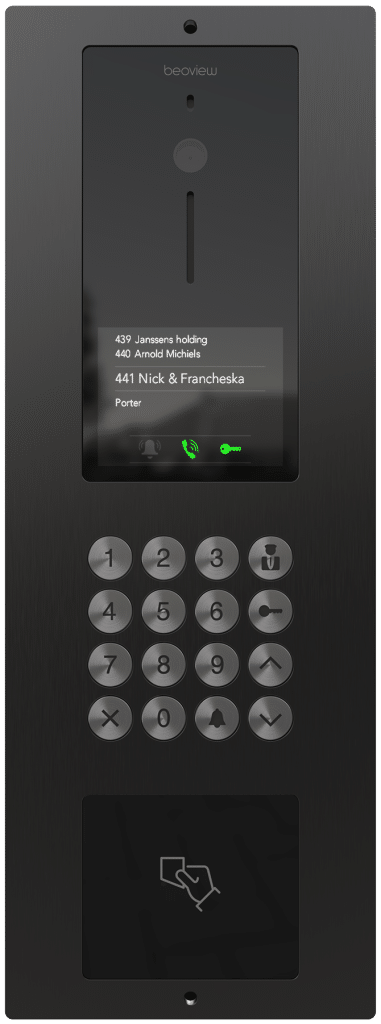

UV stable anodized aluminium and heat tempered glass front. Marine grade stainless steel engraved keys with acoustic and mechanical feedback. Space for 3rd party access control reader. Apartment selection through dialing number or resident name selection list. High brightness, 3,5” IPS TFT LCD indicating apartment selection and call progress. High sensitivity presence detection sensor for TFT LCD activation. Hardware based AES256 encryption for all communications (video, audio and control data). Wide angle camera. Two built-in relays for controlling door locks. 6-digit access code for door opening by tenants. Quick and simple installation. Choose for wall embedding with a beoBOX embedding box or for wall surface mounting with the beoFRAME surface mount frame

Additional door unlocking security, using the beoCONTROL relay instead of built-in relays.

Remote management,  multi-apartment basic call forwarding or the connection of an additional IP camera with the use of the beoGATE or IPGateway2 multipurpose beoviewCloud Gateway device.

Panel dimensions: 139 x 380 x 22,3 mm (WxHxD)
Embedded install dimension: 139 x 380 x 9 mm (WxHxD)
Surface mounted dimension: 139 x 380 x 22,3 mm (WxHxD)
Wiring: beoCatBUS® or Ethernet LAN
Technology: Bare metal Firmware platform. Hardware based AES256 encryption for all communications(video, audio and control data)

5-year guarantee.     Made in EU

Beoview Intercom d.o.o. reserves the right to make technical, design and aesthetic changes without prior notice.
