COLOR OPTIONS

---

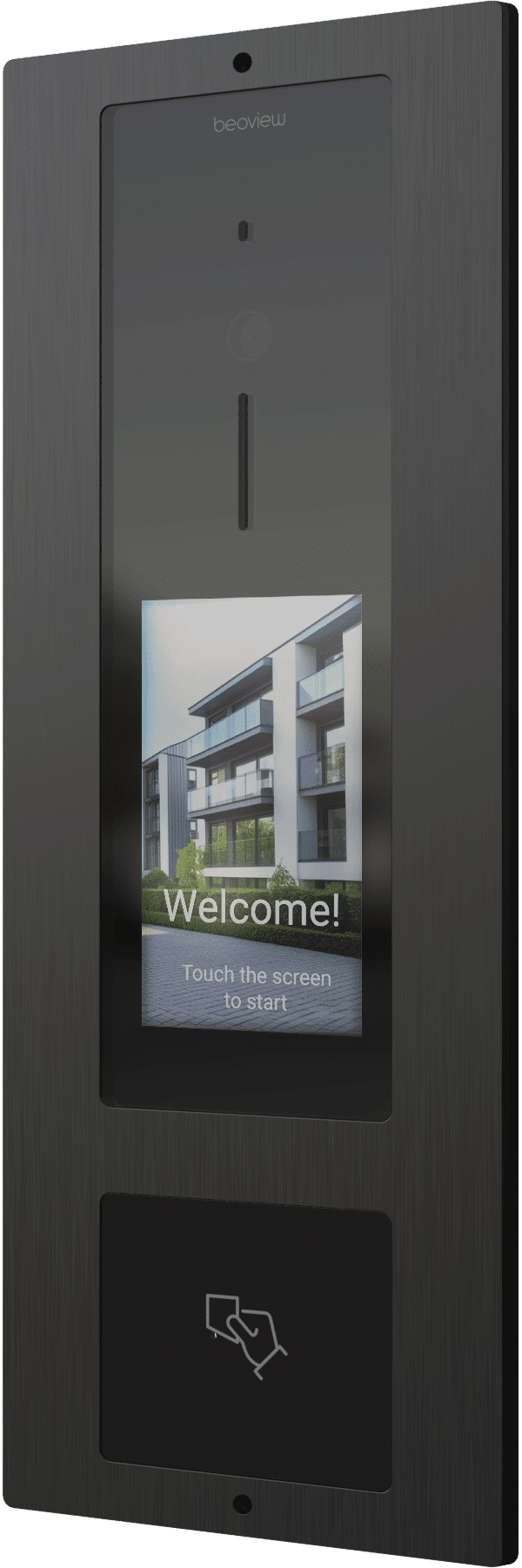

beoTOUCH BLK

Entry panel | Touchscreen | Access control reader
beoCatBUS® | Ethernet LAN

---

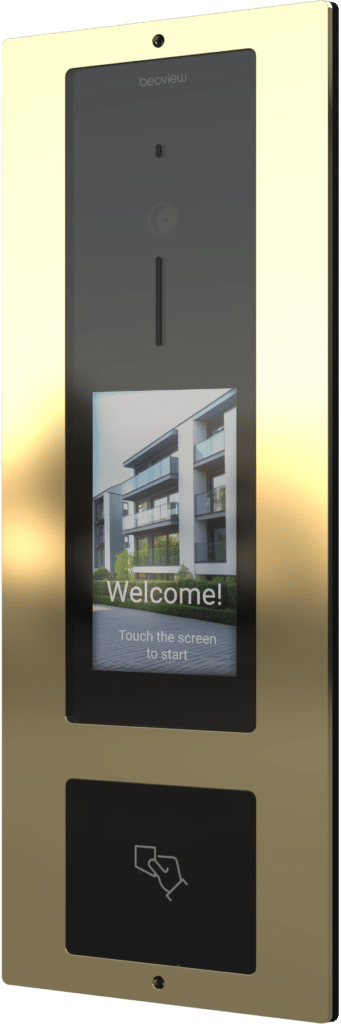

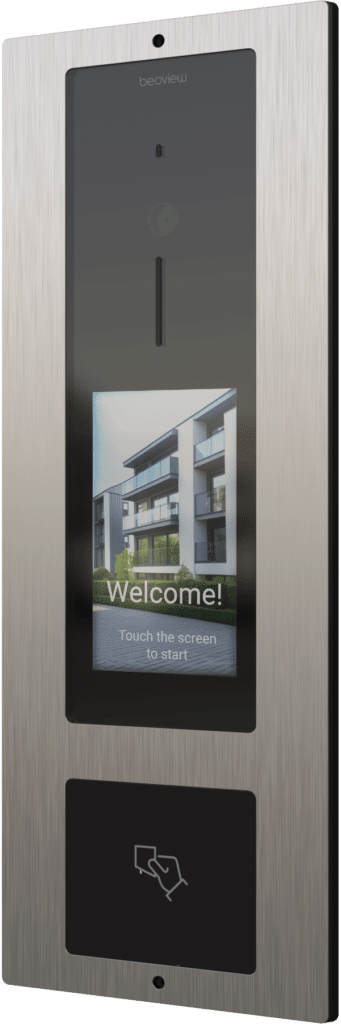

Touch screen entry panel. Front in marine grade stainless steel, black PVD or solid brass. UV stable anodized aluminum and heat tempered glass front. Apartment selection though dialling number or resident name selection list. High brightness, 5” IPS TFT LCD indicating apartment selection and call progress. High sensitivity presence detection sensor for TFT LCD activation. Hardware based AES256 encryption for all communications (video, audio and control data). Wide angle camera. Two built-in relays for controlling door locks.
Space for 3^rd party access control reader. Wall embedding with beoBOX or surface mounting with optional beoFRAME. Quick and simple installation.

Additional door unlocking security, using the C132 relay instead of built-in relays.

Remote management of the beoKEY using the beoGATE Remote gateway.
Multi-tenant call forwarding to the free BeoviewApp using the beoGATE Multi gateway. Connect an extra observation camera using the beoGATE Cam gateway.

Dimensions: 139 x 380 x 22,3 mm (WxHxD)
Embedded install dimension: 139 x 380 x 9 mm (WxHxD)
Surface mounted dimension: 139 x 380 x 22,3 mm (WxHxD)
Wiring: beoCatBUS ® or Ethernet LAN
Technology: hardware based AES256 encryption for all communication (video, audio and control data)

5-year guarantee.     Made in EU

Beoview Intercom d.o.o. reserves the right to make technical, design and aesthetic changes without prior notice.
